Elektrodrażarka drutowa na LinuxCNC
-
- Moderator
-
Lider FORUM (min. 2000)
- Posty w temacie: 12
- Posty: 6314
- Rejestracja: 23 lis 2004, 22:41
- Lokalizacja: kraków
Re: Elektrodrażarka drutowa na LinuxCNC
Hej.
Koledze chodzi chyba o generator sygnału T - off - T on ?
Na przykład T - off 20 mikro sek - T - on 50 mikro sek .
Lub o inne czasy - oczywiście .
O to chodzi ?
Hi.
My friend is probably about the signal generator T - off - T - on ?
For example, T - off 20 micro sec - T - on 50 micro sec.
Or for other times - of course.
That's it?
pzd.
Koledze chodzi chyba o generator sygnału T - off - T on ?
Na przykład T - off 20 mikro sek - T - on 50 mikro sek .
Lub o inne czasy - oczywiście .
O to chodzi ?
Hi.
My friend is probably about the signal generator T - off - T - on ?
For example, T - off 20 micro sec - T - on 50 micro sec.
Or for other times - of course.
That's it?
pzd.
rebeliant
Tagi:
-
Autor tematu - Moderator
-
Lider FORUM (min. 2000)
- Posty w temacie: 189
- Posty: 10767
- Rejestracja: 18 wrz 2010, 05:17
- Lokalizacja: Kozienice
- Kontakt:
Re: Elektrodrażarka drutowa na LinuxCNC
Nie rozumiem jednak. Ale żadnych dużych napięć czy prądów do komputera nie zasysam !
Z Agie sygnał zwarcia wzięliśmy z lampki sygnalizującej zwarcie bo bez schematu ciężko było go znaleść.
Hall ten sygnał obrabia pozwalając na ruch osi, zdejmując prąd przy nawrotach czy (w przyszłości
) włączając revers do ustąpienia zwarcia. Reszta sterowania osiami to jak w każdej maszynce tj, M8 włącza generator a M3 napęd drutu.
Z Agie sygnał zwarcia wzięliśmy z lampki sygnalizującej zwarcie bo bez schematu ciężko było go znaleść.
Hall ten sygnał obrabia pozwalając na ruch osi, zdejmując prąd przy nawrotach czy (w przyszłości

Streszczajmy się. Świat jest przeludniony słowami.
S.J.Lec
S.J.Lec
-
- Nowy użytkownik, używaj wyszukiwarki
- Posty w temacie: 1
- Posty: 1
- Rejestracja: 13 mar 2018, 21:14
-
- Nowy użytkownik, używaj wyszukiwarki
- Posty w temacie: 6
- Posty: 6
- Rejestracja: 01 mar 2018, 20:43
Re: Elektrodrażarka drutowa na LinuxCNC
Good day, gentlemen,
Here is my latest progress:
I installed new stepper motors to the machine, and I got Pin 13 to pause and resume the program as Mr. Kamar did on his machine, except that now I want to control the pulse of my machine through linuxcnc as well :<.
Dzień dobry, panowie,
Oto mój najnowszy postęp:
Zainstalowałem nowe silniki krokowe w maszynie i otrzymałem Pin 13, aby wstrzymać i wznowić program, tak jak zrobił to Pan Kamar na swoim komputerze, z tą różnicą, że teraz chcę kontrolować pulsowanie mojej maszyny również poprzez linuxcnc: <.
Here is my latest progress:
I installed new stepper motors to the machine, and I got Pin 13 to pause and resume the program as Mr. Kamar did on his machine, except that now I want to control the pulse of my machine through linuxcnc as well :<.
Dzień dobry, panowie,
Oto mój najnowszy postęp:
Zainstalowałem nowe silniki krokowe w maszynie i otrzymałem Pin 13, aby wstrzymać i wznowić program, tak jak zrobił to Pan Kamar na swoim komputerze, z tą różnicą, że teraz chcę kontrolować pulsowanie mojej maszyny również poprzez linuxcnc: <.
-
Autor tematu - Moderator
-
Lider FORUM (min. 2000)
- Posty w temacie: 189
- Posty: 10767
- Rejestracja: 18 wrz 2010, 05:17
- Lokalizacja: Kozienice
- Kontakt:
Re: Elektrodrażarka drutowa na LinuxCNC
Też przydatna funkcja



Streszczajmy się. Świat jest przeludniony słowami.
S.J.Lec
S.J.Lec
-
- Specjalista poziom 1 (min. 100)
- Posty w temacie: 5
- Posty: 202
- Rejestracja: 16 lut 2011, 22:44
- Lokalizacja: Tarnogród
Re: Elektrodrażarka drutowa na LinuxCNC

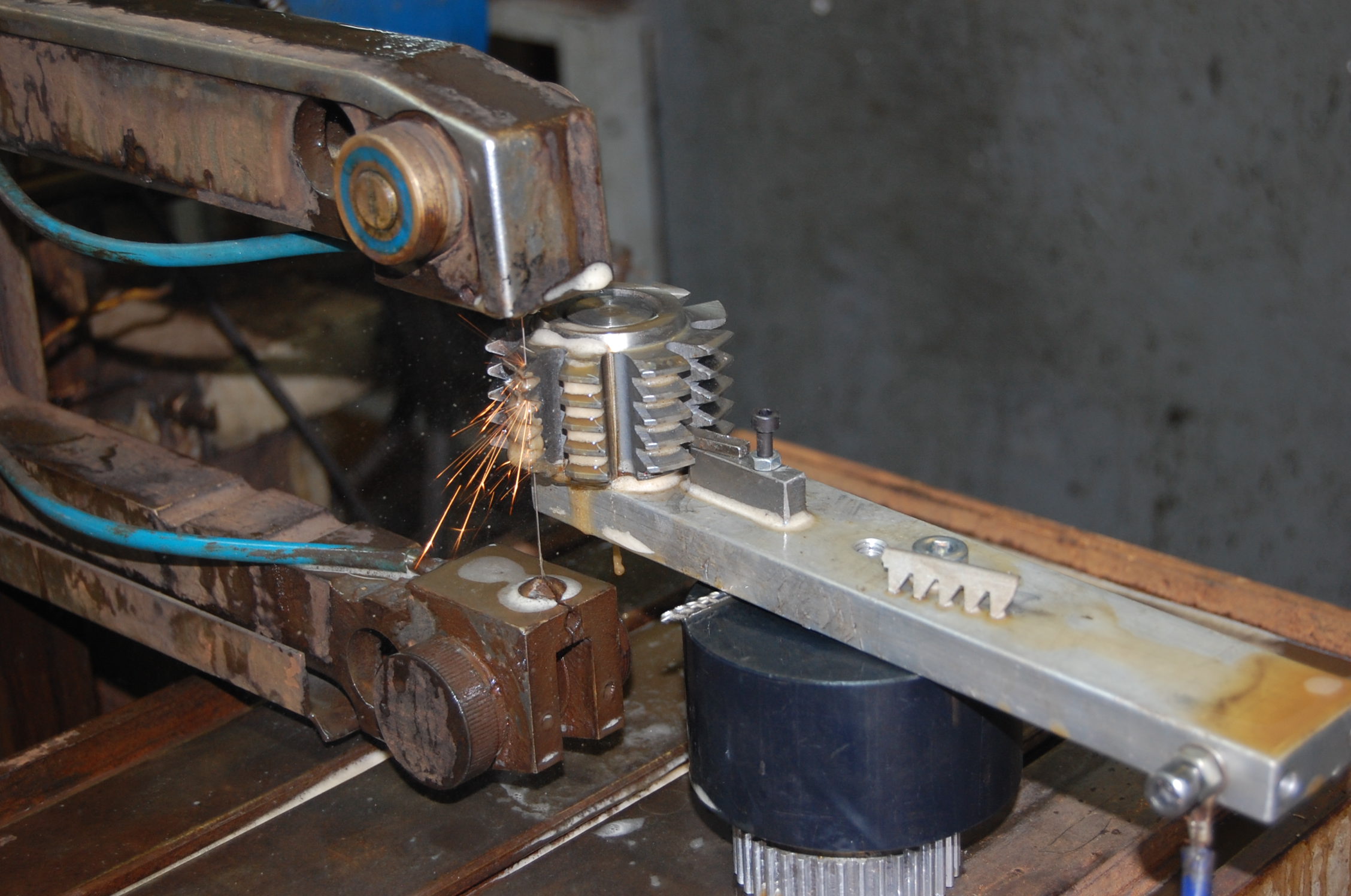

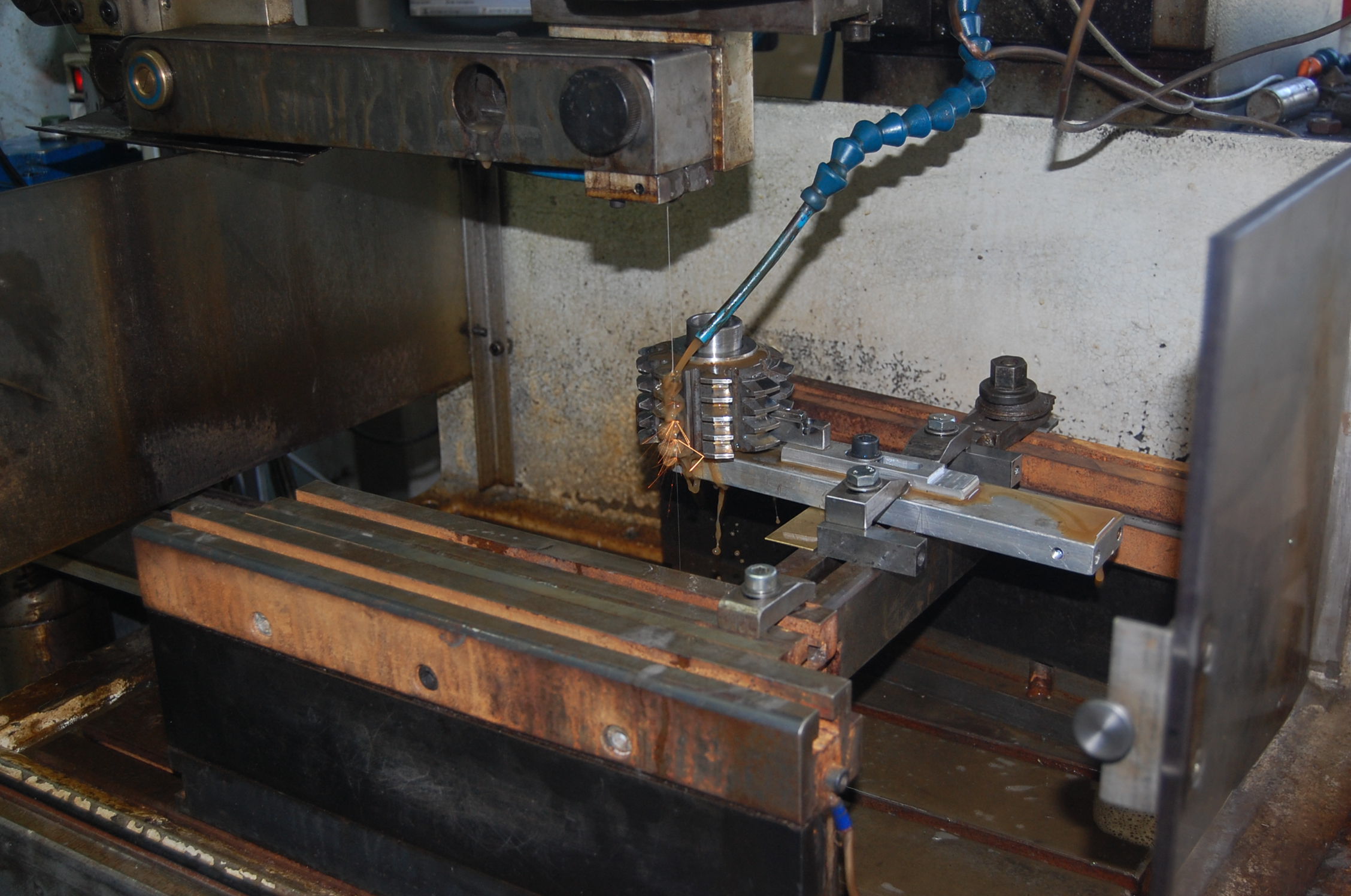

Nie miałeś przypadkiem dodatkowej osi obrotowej do takich zabaw ?
Potrzebuję postprocesor do fusion360 na drut , bo z moich przeróbek z frezarkowego nic nie wychodzi.
Podzielisz się ?
Jak Wam idzie z cofaniem po kodzie?
Potrzebuję postprocesor do fusion360 na drut , bo z moich przeróbek z frezarkowego nic nie wychodzi.
Podzielisz się ?

Jak Wam idzie z cofaniem po kodzie?
-
Autor tematu - Moderator
-
Lider FORUM (min. 2000)
- Posty w temacie: 189
- Posty: 10767
- Rejestracja: 18 wrz 2010, 05:17
- Lokalizacja: Kozienice
- Kontakt:
Re: Elektrodrażarka drutowa na LinuxCNC
Ciągle w kawałkach

Kiepsko, na symulatorze chodzi , na maszynie się buntuje. Czasu brak na dalsze zabawy, jak kiedyś wsadzą w dystrybucje to wrócimy.
Kod: Zaznacz cały
/**
Copyright (C) 2012-2015 by Autodesk, Inc.
All rights reserved.
LinuxCNC (EMC2) post processor configuration.
$Revision: 40469 $
$Date: 2015-12-15 11:50:07 +0100 (ti, 15 dec 2015) $
FORKID {52A5C3D6-1533-413E-B493-7B93D9E48B30}
*/
description = "Drutowka LinuxCNC (EMC2)";
vendor = "LinuxCNC.org";
vendorUrl = "http://www.linuxcnc.org";
legal = "Copyright (C) 2012-2015 by Autodesk, Inc.";
certificationLevel = 2;
minimumRevision = 24000;
extension = "ngc";
setCodePage("ascii");
capabilities = CAPABILITY_MILLING;
tolerance = spatial(0.002, MM);
minimumChordLength = spatial(0.01, MM);
minimumCircularRadius = spatial(0.01, MM);
maximumCircularRadius = spatial(1000, MM);
minimumCircularSweep = toRad(0.01);
maximumCircularSweep = toRad(180);
allowHelicalMoves = true;
allowedCircularPlanes = undefined; // allow any circular motion
// user-defined properties
properties = {
writeMachine: true, // write machine
writeTools: true, // writes the tools
preloadTool: true, // preloads next tool on tool change if any
showSequenceNumbers: true, // show sequence numbers
sequenceNumberStart: 10, // first sequence number
sequenceNumberIncrement: 5, // increment for sequence numbers
optionalStop: true, // optional stop
separateWordsWithSpace: true, // specifies that the words should be separated with a white space
useRadius: false, // specifies that arcs should be output using the radius (R word) instead of the I, J, and K words
useParametricFeed: false, // specifies that feed should be output using Q values
showNotes: false, // specifies that operation notes should be output
useG28: false // turn on to use G28 instead of G53 for machine retracts
};
var permittedCommentChars = " ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789.,=_-";
var mapCoolantTable = new Table(
[9, 8, 7],
{initial:COOLANT_OFF, force:true},
"Invalid coolant mode"
);
var gFormat = createFormat({prefix:"G", decimals:1});
var mFormat = createFormat({prefix:"M", decimals:1});
var hFormat = createFormat({prefix:"H", decimals:1});
var dFormat = createFormat({prefix:"D", decimals:1});
var xyzFormat = createFormat({decimals:(unit == MM ? 3 : 4), forceDecimal:true});
var rFormat = xyzFormat; // radius
var abcFormat = createFormat({decimals:3, forceDecimal:true, scale:DEG});
var feedFormat = createFormat({decimals:(unit == MM ? 2 : 3), forceDecimal:true});
var pitchFormat = createFormat({decimals:(unit == MM ? 3 : 4), forceDecimal:true});
var toolFormat = createFormat({decimals:0});
var rpmFormat = createFormat({decimals:0});
var secFormat = createFormat({decimals:3, forceDecimal:true}); // seconds - range 0.001-99999.999
var taperFormat = createFormat({decimals:1, scale:DEG});
var xOutput = createVariable({prefix:"X"}, xyzFormat);
var yOutput = createVariable({prefix:"Y"}, xyzFormat);
var zOutput = createVariable({prefix:"Z"}, xyzFormat);
var aOutput = createVariable({prefix:"A"}, abcFormat);
var bOutput = createVariable({prefix:"B"}, abcFormat);
var cOutput = createVariable({prefix:"C"}, abcFormat);
var feedOutput = createVariable({prefix:"F"}, feedFormat);
var sOutput = createVariable({prefix:"S", force:true}, rpmFormat);
var dOutput = createVariable({}, dFormat);
// circular output
var iOutput = createReferenceVariable({prefix:"I", force:true}, xyzFormat);
var jOutput = createReferenceVariable({prefix:"J", force:true}, xyzFormat);
var kOutput = createReferenceVariable({prefix:"K", force:true}, xyzFormat);
var gMotionModal = createModal({}, gFormat); // modal group 1 // G0-G3, ...
var gPlaneModal = createModal({onchange:function () {gMotionModal.reset();}}, gFormat); // modal group 2 // G17-19
var gAbsIncModal = createModal({}, gFormat); // modal group 3 // G90-91
var gFeedModeModal = createModal({}, gFormat); // modal group 5 // G93-94
var gUnitModal = createModal({}, gFormat); // modal group 6 // G20-21
var gCycleModal = createModal({}, gFormat); // modal group 9 // G81, ...
var gRetractModal = createModal({}, gFormat); // modal group 10 // G98-99
// fixed settings
var firstFeedParameter = 100;
var WARNING_WORK_OFFSET = 0;
// collected state
var sequenceNumber;
var currentWorkOffset;
var forceSpindleSpeed = false;
var activeMovements; // do not use by default
var currentFeedId;
/**
Writes the specified block.
*/
function writeBlock() {
if (properties.showSequenceNumbers) {
writeWords2("N" + sequenceNumber, arguments);
sequenceNumber += properties.sequenceNumberIncrement;
if (sequenceNumber > 99999) {
sequenceNumber = properties.sequenceNumberStart;
}
} else {
writeWords(arguments);
}
}
/**
Writes the specified optional block.
*/
function writeOptionalBlock() {
if (properties.showSequenceNumbers) {
var words = formatWords(arguments);
if (words) {
writeWords("/", "N" + sequenceNumber, words);
sequenceNumber += properties.sequenceNumberIncrement;
if (sequenceNumber > 99999) {
sequenceNumber = properties.sequenceNumberStart;
}
}
} else {
writeWords2("/", arguments);
}
}
function formatComment(text) {
return "(" + filterText(String(text).toUpperCase(), permittedCommentChars) + ")";
}
/**
Output a comment.
*/
function writeComment(text) {
writeln(formatComment(text));
}
function onOpen() {
if (false) { // note: setup your machine here
var aAxis = createAxis({coordinate:0, table:false, axis:[1, 0, 0], range:[-360,360], preference:1});
var cAxis = createAxis({coordinate:2, table:false, axis:[0, 0, 1], range:[-360,360], preference:1});
machineConfiguration = new MachineConfiguration(aAxis, cAxis);
setMachineConfiguration(machineConfiguration);
optimizeMachineAngles2(0); // TCP mode
}
if (!machineConfiguration.isMachineCoordinate(0)) {
aOutput.disable();
}
if (!machineConfiguration.isMachineCoordinate(1)) {
bOutput.disable();
}
if (!machineConfiguration.isMachineCoordinate(2)) {
cOutput.disable();
}
if (!properties.separateWordsWithSpace) {
setWordSeparator("");
}
sequenceNumber = properties.sequenceNumberStart;
writeln("%");
if (programName) {
writeComment(programName);
}
if (programComment) {
writeComment(programComment);
}
// dump machine configuration
var vendor = machineConfiguration.getVendor();
var model = machineConfiguration.getModel();
var description = machineConfiguration.getDescription();
if (properties.writeMachine && (vendor || model || description)) {
writeComment(localize("Machine"));
if (vendor) {
writeComment(" " + localize("vendor") + ": " + vendor);
}
if (model) {
writeComment(" " + localize("model") + ": " + model);
}
if (description) {
writeComment(" " + localize("description") + ": " + description);
}
}
// dump tool information
if (properties.writeTools) {
var zRanges = {};
if (is3D()) {
var numberOfSections = getNumberOfSections();
for (var i = 0; i < numberOfSections; ++i) {
var section = getSection(i);
var zRange = section.getGlobalZRange();
var tool = section.getTool();
if (zRanges[tool.number]) {
zRanges[tool.number].expandToRange(zRange);
} else {
zRanges[tool.number] = zRange;
}
}
}
var tools = getToolTable();
if (tools.getNumberOfTools() > 0) {
for (var i = 0; i < tools.getNumberOfTools(); ++i) {
var tool = tools.getTool(i);
var comment = "T" + toolFormat.format(tool.number) + " " +
"D=" + xyzFormat.format(tool.diameter) + " " +
localize("CR") + "=" + xyzFormat.format(tool.cornerRadius);
if ((tool.taperAngle > 0) && (tool.taperAngle < Math.PI)) {
comment += " " + localize("TAPER") + "=" + taperFormat.format(tool.taperAngle) + localize("deg");
}
if (zRanges[tool.number]) {
comment += " - " + localize("ZMIN") + "=" + xyzFormat.format(zRanges[tool.number].getMinimum());
}
comment += " - " + getToolTypeName(tool.type);
writeComment(comment);
}
}
}
if (false) {
// check for duplicate tool number
for (var i = 0; i < getNumberOfSections(); ++i) {
var sectioni = getSection(i);
var tooli = sectioni.getTool();
for (var j = i + 1; j < getNumberOfSections(); ++j) {
var sectionj = getSection(j);
var toolj = sectionj.getTool();
if (tooli.number == toolj.number) {
if (xyzFormat.areDifferent(tooli.diameter, toolj.diameter) ||
xyzFormat.areDifferent(tooli.cornerRadius, toolj.cornerRadius) ||
abcFormat.areDifferent(tooli.taperAngle, toolj.taperAngle) ||
(tooli.numberOfFlutes != toolj.numberOfFlutes)) {
error(
subst(
localize("Using the same tool number for different cutter geometry for operation '%1' and '%2'."),
sectioni.hasParameter("operation-comment") ? sectioni.getParameter("operation-comment") : ("#" + (i + 1)),
sectionj.hasParameter("operation-comment") ? sectionj.getParameter("operation-comment") : ("#" + (j + 1))
)
);
return;
}
}
}
}
}
// absolute coordinates, feed per min, and incremental arc center mode
// writeBlock(gAbsIncModal.format(90), gFeedModeModal.format(94), gPlaneModal.format(17), gFormat.format(91.1)); artur
writeBlock(gFeedModeModal.format(94), gPlaneModal.format(17), gFormat.format(91.1));
switch (unit) {
case IN:
writeBlock(gUnitModal.format(20));
break;
case MM:
writeBlock(gUnitModal.format(21));
break;
}
}
function onComment(message) {
writeComment(message);
}
/** Force output of X, Y, and Z. */
function forceXYZ() {
xOutput.reset();
yOutput.reset();
zOutput.reset();
}
/** Force output of A, B, and C. */
function forceABC() {
aOutput.reset();
bOutput.reset();
cOutput.reset();
}
function forceFeed() {
currentFeedId = undefined;
feedOutput.reset();
}
/** Force output of X, Y, Z, A, B, C, and F on next output. */
function forceAny() {
forceXYZ();
forceABC();
forceFeed();
}
function FeedContext(id, description, feed) {
this.id = id;
this.description = description;
this.feed = feed;
}
function getFeed(f) {
if (activeMovements) {
var feedContext = activeMovements[movement];
if (feedContext != undefined) {
if (!feedFormat.areDifferent(feedContext.feed, f)) {
if (feedContext.id == currentFeedId) {
return ""; // nothing has changed
}
forceFeed();
currentFeedId = feedContext.id;
return "F#" + (firstFeedParameter + feedContext.id);
}
}
currentFeedId = undefined; // force Q feed next time
}
return feedOutput.format(f); // use feed value
}
function initializeActiveFeeds() {
activeMovements = new Array();
var movements = currentSection.getMovements();
var id = 0;
var activeFeeds = new Array();
if (hasParameter("operation:tool_feedCutting")) {
if (movements & ((1 << MOVEMENT_CUTTING) | (1 << MOVEMENT_LINK_TRANSITION) | (1 << MOVEMENT_EXTENDED))) {
var feedContext = new FeedContext(id, localize("Cutting"), getParameter("operation:tool_feedCutting"));
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_CUTTING] = feedContext;
activeMovements[MOVEMENT_LINK_TRANSITION] = feedContext;
activeMovements[MOVEMENT_EXTENDED] = feedContext;
}
++id;
if (movements & (1 << MOVEMENT_PREDRILL)) {
feedContext = new FeedContext(id, localize("Predrilling"), getParameter("operation:tool_feedCutting"));
activeMovements[MOVEMENT_PREDRILL] = feedContext;
activeFeeds.push(feedContext);
}
++id;
}
if (hasParameter("operation:finishFeedrate")) {
if (movements & (1 << MOVEMENT_FINISH_CUTTING)) {
var feedContext = new FeedContext(id, localize("Finish"), getParameter("operation:finishFeedrate"));
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_FINISH_CUTTING] = feedContext;
}
++id;
} else if (hasParameter("operation:tool_feedCutting")) {
if (movements & (1 << MOVEMENT_FINISH_CUTTING)) {
var feedContext = new FeedContext(id, localize("Finish"), getParameter("operation:tool_feedCutting"));
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_FINISH_CUTTING] = feedContext;
}
++id;
}
if (hasParameter("operation:tool_feedEntry")) {
if (movements & (1 << MOVEMENT_LEAD_IN)) {
var feedContext = new FeedContext(id, localize("Entry"), getParameter("operation:tool_feedEntry"));
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_LEAD_IN] = feedContext;
}
++id;
}
if (hasParameter("operation:tool_feedExit")) {
if (movements & (1 << MOVEMENT_LEAD_OUT)) {
var feedContext = new FeedContext(id, localize("Exit"), getParameter("operation:tool_feedExit"));
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_LEAD_OUT] = feedContext;
}
++id;
}
if (hasParameter("operation:noEngagementFeedrate")) {
if (movements & (1 << MOVEMENT_LINK_DIRECT)) {
var feedContext = new FeedContext(id, localize("Direct"), getParameter("operation:noEngagementFeedrate"));
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_LINK_DIRECT] = feedContext;
}
++id;
} else if (hasParameter("operation:tool_feedCutting") &&
hasParameter("operation:tool_feedEntry") &&
hasParameter("operation:tool_feedExit")) {
if (movements & (1 << MOVEMENT_LINK_DIRECT)) {
var feedContext = new FeedContext(id, localize("Direct"), Math.max(getParameter("operation:tool_feedCutting"), getParameter("operation:tool_feedEntry"), getParameter("operation:tool_feedExit")));
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_LINK_DIRECT] = feedContext;
}
++id;
}
if (hasParameter("operation:reducedFeedrate")) {
if (movements & (1 << MOVEMENT_REDUCED)) {
var feedContext = new FeedContext(id, localize("Reduced"), getParameter("operation:reducedFeedrate"));
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_REDUCED] = feedContext;
}
++id;
}
if (hasParameter("operation:tool_feedRamp")) {
if (movements & ((1 << MOVEMENT_RAMP) | (1 << MOVEMENT_RAMP_HELIX) | (1 << MOVEMENT_RAMP_PROFILE) | (1 << MOVEMENT_RAMP_ZIG_ZAG))) {
var feedContext = new FeedContext(id, localize("Ramping"), getParameter("operation:tool_feedRamp"));
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_RAMP] = feedContext;
activeMovements[MOVEMENT_RAMP_HELIX] = feedContext;
activeMovements[MOVEMENT_RAMP_PROFILE] = feedContext;
activeMovements[MOVEMENT_RAMP_ZIG_ZAG] = feedContext;
}
++id;
}
if (hasParameter("operation:tool_feedPlunge")) {
if (movements & (1 << MOVEMENT_PLUNGE)) {
var feedContext = new FeedContext(id, localize("Plunge"), getParameter("operation:tool_feedPlunge"));
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_PLUNGE] = feedContext;
}
++id;
}
if (true) { // high feed
if (movements & (1 << MOVEMENT_HIGH_FEED)) {
var feedContext = new FeedContext(id, localize("High Feed"), this.highFeedrate);
activeFeeds.push(feedContext);
activeMovements[MOVEMENT_HIGH_FEED] = feedContext;
}
++id;
}
for (var i = 0; i < activeFeeds.length; ++i) {
var feedContext = activeFeeds[i];
writeBlock("#" + (firstFeedParameter + feedContext.id) + "=" + feedFormat.format(feedContext.feed), formatComment(feedContext.description));
}
}
var currentWorkPlaneABC = undefined;
function forceWorkPlane() {
currentWorkPlaneABC = undefined;
}
function setWorkPlane(abc) {
if (!machineConfiguration.isMultiAxisConfiguration()) {
return; // ignore
}
if (!((currentWorkPlaneABC == undefined) ||
abcFormat.areDifferent(abc.x, currentWorkPlaneABC.x) ||
abcFormat.areDifferent(abc.y, currentWorkPlaneABC.y) ||
abcFormat.areDifferent(abc.z, currentWorkPlaneABC.z))) {
return; // no change
}
onCommand(COMMAND_UNLOCK_MULTI_AXIS);
// NOTE: add retract here
writeBlock(
gMotionModal.format(0),
conditional(machineConfiguration.isMachineCoordinate(0), "A" + abcFormat.format(abc.x)),
conditional(machineConfiguration.isMachineCoordinate(1), "B" + abcFormat.format(abc.y)),
conditional(machineConfiguration.isMachineCoordinate(2), "C" + abcFormat.format(abc.z))
);
onCommand(COMMAND_LOCK_MULTI_AXIS);
currentWorkPlaneABC = abc;
}
var closestABC = false; // choose closest machine angles
var currentMachineABC;
function getWorkPlaneMachineABC(workPlane) {
var W = workPlane; // map to global frame
var abc = machineConfiguration.getABC(W);
if (closestABC) {
if (currentMachineABC) {
abc = machineConfiguration.remapToABC(abc, currentMachineABC);
} else {
abc = machineConfiguration.getPreferredABC(abc);
}
} else {
abc = machineConfiguration.getPreferredABC(abc);
}
try {
abc = machineConfiguration.remapABC(abc);
currentMachineABC = abc;
} catch (e) {
error(
localize("Machine angles not supported") + ":"
+ conditional(machineConfiguration.isMachineCoordinate(0), " A" + abcFormat.format(abc.x))
+ conditional(machineConfiguration.isMachineCoordinate(1), " B" + abcFormat.format(abc.y))
+ conditional(machineConfiguration.isMachineCoordinate(2), " C" + abcFormat.format(abc.z))
);
}
var direction = machineConfiguration.getDirection(abc);
if (!isSameDirection(direction, W.forward)) {
error(localize("Orientation not supported."));
}
if (!machineConfiguration.isABCSupported(abc)) {
error(
localize("Work plane is not supported") + ":"
+ conditional(machineConfiguration.isMachineCoordinate(0), " A" + abcFormat.format(abc.x))
+ conditional(machineConfiguration.isMachineCoordinate(1), " B" + abcFormat.format(abc.y))
+ conditional(machineConfiguration.isMachineCoordinate(2), " C" + abcFormat.format(abc.z))
);
}
var tcp = true;
if (tcp) {
setRotation(W); // TCP mode
} else {
var O = machineConfiguration.getOrientation(abc);
var R = machineConfiguration.getRemainingOrientation(abc, W);
setRotation(R);
}
return abc;
}
function onSection() {
var insertToolCall = isFirstSection() ||
currentSection.getForceToolChange && currentSection.getForceToolChange() ||
(tool.number != getPreviousSection().getTool().number);
var retracted = false; // specifies that the tool has been retracted to the safe plane
var newWorkOffset = isFirstSection() ||
(getPreviousSection().workOffset != currentSection.workOffset); // work offset changes
var newWorkPlane = isFirstSection() ||
!isSameDirection(getPreviousSection().getGlobalFinalToolAxis(), currentSection.getGlobalInitialToolAxis());
if (insertToolCall || newWorkOffset || newWorkPlane) {
// stop spindle before retract during tool change
if (insertToolCall && !isFirstSection()) {
onCommand(COMMAND_STOP_SPINDLE);
}
// retract to safe plane
retracted = true;
if (properties.useG28) {
//writeBlock(gFormat.format(28), gAbsIncModal.format(91), "Z" + xyzFormat.format(0)); // retract // Artur
// writeBlock(gAbsIncModal.format(90));
} else {
//writeBlock(gAbsIncModal.format(90), gFormat.format(53), gMotionModal.format(0), "Z" + xyzFormat.format(0)); // retract // Artur
}
zOutput.reset();
}
if (hasParameter("operation-comment")) {
var comment = getParameter("operation-comment");
if (comment) {
writeComment(comment);
}
}
if (properties.showNotes && hasParameter("notes")) {
var notes = getParameter("notes");
if (notes) {
var lines = String(notes).split("\n");
var r1 = new RegExp("^[\\s]+", "g");
var r2 = new RegExp("[\\s]+$", "g");
for (line in lines) {
var comment = lines[line].replace(r1, "").replace(r2, "");
if (comment) {
writeComment(comment);
}
}
}
}
if (insertToolCall) {
forceWorkPlane();
retracted = true;
onCommand(COMMAND_COOLANT_OFF);
if (!isFirstSection() && properties.optionalStop) {
onCommand(COMMAND_OPTIONAL_STOP);
}
if (tool.number > 99) {
warning(localize("Tool number exceeds maximum value."));
}
// writeBlock("T" + toolFormat.format(tool.number), mFormat.format(6)); // artur
if (tool.comment) {
writeComment(tool.comment);
}
var showToolZMin = false;
if (showToolZMin) {
if (is3D()) {
var numberOfSections = getNumberOfSections();
var zRange = currentSection.getGlobalZRange();
var number = tool.number;
for (var i = currentSection.getId() + 1; i < numberOfSections; ++i) {
var section = getSection(i);
if (section.getTool().number != number) {
break;
}
zRange.expandToRange(section.getGlobalZRange());
}
writeComment(localize("ZMIN") + "=" + zRange.getMinimum());
}
}
if (properties.preloadTool) {
var nextTool = getNextTool(tool.number);
if (nextTool) {
// writeBlock("T" + toolFormat.format(nextTool.number)); // artur
} else {
// preload first tool
var section = getSection(0);
var firstToolNumber = section.getTool().number;
if (tool.number != firstToolNumber) {
// writeBlock("T" + toolFormat.format(firstToolNumber));//artur
}
}
}
}
if (insertToolCall ||
forceSpindleSpeed ||
isFirstSection() ||
(rpmFormat.areDifferent(tool.spindleRPM, sOutput.getCurrent())) ||
(tool.clockwise != getPreviousSection().getTool().clockwise)) {
forceSpindleSpeed = false;
if (tool.spindleRPM < 1) {
error(localize("Spindle speed out of range."));
return;
}
if (tool.spindleRPM > 99999) {
warning(localize("Spindle speed exceeds maximum value."));
}
writeBlock(
sOutput.format(tool.spindleRPM), mFormat.format(tool.clockwise ? 3 : 4)
);
}
// wcs
if (insertToolCall) { // force work offset when changing tool
currentWorkOffset = undefined;
}
var workOffset = currentSection.workOffset;
if (workOffset == 0) {
warningOnce(localize("Work offset has not been specified. Using G54 as WCS."), WARNING_WORK_OFFSET);
workOffset = 1;
}
if (workOffset > 0) {
if (workOffset > 6) {
var p = workOffset - 6; // 1->...
if (p > 3) {
error(localize("Work offset out of range."));
return;
} else {
if (workOffset != currentWorkOffset) {
writeBlock(gFormat.format(59.1), "P" + p); // G59.1P
currentWorkOffset = workOffset;
}
}
} else {
if (workOffset != currentWorkOffset) {
// writeBlock(gFormat.format(53 + workOffset)); // G54->G59 // artur
currentWorkOffset = workOffset;
}
}
}
forceXYZ();
if (machineConfiguration.isMultiAxisConfiguration()) { // use 5-axis indexing for multi-axis mode
// set working plane after datum shift
var abc = new Vector(0, 0, 0);
if (currentSection.isMultiAxis()) {
forceWorkPlane();
cancelTransformation();
} else {
abc = getWorkPlaneMachineABC(currentSection.workPlane);
}
setWorkPlane(abc);
} else { // pure 3D
var remaining = currentSection.workPlane;
if (!isSameDirection(remaining.forward, new Vector(0, 0, 1))) {
error(localize("Tool orientation is not supported."));
return;
}
setRotation(remaining);
}
// set coolant after we have positioned at Z
{
var c = mapCoolantTable.lookup(tool.coolant);
if (c) {
writeBlock(mFormat.format(c));
} else {
warning(localize("Coolant not supported."));
}
}
forceAny();
gMotionModal.reset();
var initialPosition = getFramePosition(currentSection.getInitialPosition());
if (!retracted) {
if (getCurrentPosition().z < initialPosition.z) {
//writeBlock(gMotionModal.format(0), zOutput.format(initialPosition.z)); //artur
}
}
if (insertToolCall || retracted || (!isFirstSection() && getPreviousSection().isMultiAxis())) {
var lengthOffset = tool.lengthOffset;
if (lengthOffset > 99) {
error(localize("Length offset out of range."));
return;
}
gMotionModal.reset();
writeBlock(gPlaneModal.format(17));
if (!machineConfiguration.isHeadConfiguration()) {
writeBlock(
gAbsIncModal.format(90),
gMotionModal.format(0), xOutput.format(initialPosition.x), yOutput.format(initialPosition.y)
);
// writeBlock(gMotionModal.format(0), gFormat.format(43), zOutput.format(initialPosition.z), hFormat.format(lengthOffset)); // artur
} else {
/*
writeBlock(
gAbsIncModal.format(90),
gMotionModal.format(0),
gFormat.format(43), xOutput.format(initialPosition.x),
yOutput.format(initialPosition.y),
zOutput.format(initialPosition.z), hFormat.format(lengthOffset)
);
*/ artur
}
gMotionModal.reset();
} else {
writeBlock(
gAbsIncModal.format(90),
gMotionModal.format(0),
xOutput.format(initialPosition.x),
yOutput.format(initialPosition.y)
);
}
if (properties.useParametricFeed &&
hasParameter("operation-strategy") &&
(getParameter("operation-strategy") != "drill")) {
if (!insertToolCall &&
activeMovements &&
(getCurrentSectionId() > 0) &&
(getPreviousSection().getPatternId() == currentSection.getPatternId())) {
// use the current feeds
} else {
initializeActiveFeeds();
}
} else {
activeMovements = undefined;
}
}
function onDwell(seconds) {
if (seconds > 99999.999) {
warning(localize("Dwelling time is out of range."));
}
writeBlock(gFeedModeModal.format(94), gFormat.format(4), "P" + secFormat.format(seconds));
}
function onSpindleSpeed(spindleSpeed) {
writeBlock(sOutput.format(spindleSpeed));
}
function onCycle() {
writeBlock(gPlaneModal.format(17));
}
function getCommonCycle(x, y, z, r) {
forceXYZ(); // force xyz on first drill hole of any cycle
return [xOutput.format(x), yOutput.format(y),
zOutput.format(z),
"R" + xyzFormat.format(r)];
}
function onCyclePoint(x, y, z) {
switch (cycleType) {
case "tapping":
case "left-tapping":
case "right-tapping":
cycleExpanded = true;
repositionToCycleClearance(cycle, x, y, z);
writeBlock(
gAbsIncModal.format(90), gMotionModal.format(0),
conditional(gPlaneModal.getCurrent() == 17, zOutput.format(cycle.retract)),
conditional(gPlaneModal.getCurrent() == 18, yOutput.format(cycle.retract)),
conditional(gPlaneModal.getCurrent() == 19, xOutput.format(cycle.retract))
);
writeBlock(
gAbsIncModal.format(90), gFormat.format(33.1),
conditional(gPlaneModal.getCurrent() == 17, zOutput.format(z)),
conditional(gPlaneModal.getCurrent() == 18, yOutput.format(y)),
conditional(gPlaneModal.getCurrent() == 19, xOutput.format(x)),
"K" + pitchFormat.format(tool.threadPitch)
);
gMotionModal.reset();
writeBlock(
gAbsIncModal.format(90), gMotionModal.format(0),
conditional(gPlaneModal.getCurrent() == 17, zOutput.format(cycle.clearance)),
conditional(gPlaneModal.getCurrent() == 18, yOutput.format(cycle.clearance)),
conditional(gPlaneModal.getCurrent() == 19, xOutput.format(cycle.clearance))
);
return;
/*
case "tapping-with-chip-breaking":
case "left-tapping-with-chip-breaking":
case "right-tapping-with-chip-breaking":
*/
}
if (isFirstCyclePoint()) {
repositionToCycleClearance(cycle, x, y, z);
// return to initial Z which is clearance plane and set absolute mode
var F = cycle.feedrate;
var P = (cycle.dwell == 0) ? 0 : clamp(0.001, cycle.dwell, 99999999); // in seconds
switch (cycleType) {
case "drilling":
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(81),
getCommonCycle(x, y, z, cycle.retract),
feedOutput.format(F)
);
break;
case "counter-boring":
if (P > 0) {
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(82),
getCommonCycle(x, y, z, cycle.retract),
"P" + secFormat.format(P),
feedOutput.format(F)
);
} else {
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(81),
getCommonCycle(x, y, z, cycle.retract),
feedOutput.format(F)
);
}
break;
case "chip-breaking":
expandCyclePoint(x, y, z);
break;
case "deep-drilling":
if (P > 0) {
expandCyclePoint(x, y, z);
} else {
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(83),
getCommonCycle(x, y, z, cycle.retract),
"Q" + xyzFormat.format(cycle.incrementalDepth),
// conditional(P > 0, "P" + secFormat.format(P)),
feedOutput.format(F)
);
}
break;
case "fine-boring":
expandCyclePoint(x, y, z);
break;
/* // not supported
case "back-boring":
var dx = (gPlaneModal.getCurrent() == 19) ? cycle.backBoreDistance : 0;
var dy = (gPlaneModal.getCurrent() == 18) ? cycle.backBoreDistance : 0;
var dz = (gPlaneModal.getCurrent() == 17) ? cycle.backBoreDistance : 0;
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(87),
getCommonCycle(x - dx, y - dy, z - dz, cycle.bottom),
"Q" + xyzFormat.format(cycle.shift),
"P" + secFormat.format(P), // not optional
feedOutput.format(F)
);
break;
*/
case "reaming":
if (P > 0) {
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(89),
getCommonCycle(x, y, z, cycle.retract),
"P" + secFormat.format(P),
feedOutput.format(F)
);
} else {
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(85),
getCommonCycle(x, y, z, cycle.retract),
feedOutput.format(F)
);
}
break;
case "stop-boring":
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(86),
getCommonCycle(x, y, z, cycle.retract),
conditional(P > 0, "P" + secFormat.format(P)),
feedOutput.format(F)
);
break;
case "manual-boring":
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(88),
getCommonCycle(x, y, z, cycle.retract),
"P" + secFormat.format(P), // not optional
feedOutput.format(F)
);
break;
case "boring":
if (P > 0) {
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(89),
getCommonCycle(x, y, z, cycle.retract),
"P" + secFormat.format(P), // not optional
feedOutput.format(F)
);
} else {
writeBlock(
gRetractModal.format(98), gAbsIncModal.format(90), gCycleModal.format(85),
getCommonCycle(x, y, z, cycle.retract),
feedOutput.format(F)
);
}
break;
default:
expandCyclePoint(x, y, z);
}
} else {
if (cycleExpanded) {
expandCyclePoint(x, y, z);
} else {
var _x = xOutput.format(x);
var _y = yOutput.format(y);
var _z = zOutput.format(z);
if (!_x && !_y && !_z) {
switch (gPlaneModal.getCurrent()) {
case 17: // XY
xOutput.reset(); // at least one axis is required
_x = xOutput.format(x);
break;
case 18: // ZX
zOutput.reset(); // at least one axis is required
_z = zOutput.format(z);
break;
case 19: // YZ
yOutput.reset(); // at least one axis is required
_y = yOutput.format(y);
break;
}
}
writeBlock(_x, _y, _z);
}
}
}
function onCycleEnd() {
if (!cycleExpanded) {
writeBlock(gCycleModal.format(80));
gMotionModal.reset();
}
}
var pendingRadiusCompensation = -1;
function onRadiusCompensation() {
pendingRadiusCompensation = radiusCompensation;
}
function onRapid(_x, _y, _z) {
var x = xOutput.format(_x);
var y = yOutput.format(_y);
var z = zOutput.format(_z);
if (x || y || z) {
if (pendingRadiusCompensation >= 0) {
error(localize("Radius compensation mode cannot be changed at rapid traversal."));
return;
}
writeBlock(gMotionModal.format(0), x, y, ""); // artur
forceFeed();
}
}
function onLinear(_x, _y, _z, feed) {
var x = xOutput.format(_x);
var y = yOutput.format(_y);
var z = zOutput.format(_z);
var f = getFeed(feed);
if (x || y || z) {
if (pendingRadiusCompensation >= 0) {
pendingRadiusCompensation = -1;
var d = tool.diameterOffset;
if (d > 99) {
warning(localize("The diameter offset exceeds the maximum value."));
}
writeBlock(gPlaneModal.format(17));
switch (radiusCompensation) {
case RADIUS_COMPENSATION_LEFT:
dOutput.reset();
writeBlock(gMotionModal.format(1), gFormat.format(41), x, y, "", dOutput.format(d), ""); // artur
break;
case RADIUS_COMPENSATION_RIGHT:
dOutput.reset();
writeBlock(gMotionModal.format(1), gFormat.format(42), x, y, "", dOutput.format(d), ""); // artur
break;
default:
writeBlock(gMotionModal.format(1), gFormat.format(40), x, y, "", ""); // artur
}
} else {
writeBlock(gMotionModal.format(1), x, y, "", ""); // artur
}
} else if (f) {
if (getNextRecord().isMotion()) { // try not to output feed without motion
forceFeed(); // force feed on next line
} else {
//writeBlock(gMotionModal.format(1), f); // artur
}
}
}
function onRapid5D(_x, _y, _z, _a, _b, _c) {
if (!currentSection.isOptimizedForMachine()) {
error(localize("This post configuration has not been customized for 5-axis simultaneous toolpath."));
return;
}
if (pendingRadiusCompensation >= 0) {
error(localize("Radius compensation mode cannot be changed at rapid traversal."));
return;
}
var x = xOutput.format(_x);
var y = yOutput.format(_y);
var z = zOutput.format(_z);
var a = aOutput.format(_a);
var b = bOutput.format(_b);
var c = cOutput.format(_c);
writeBlock(gMotionModal.format(0), x, y, z, a, b, c);
forceFeed();
}
function onLinear5D(_x, _y, _z, _a, _b, _c, feed) {
if (!currentSection.isOptimizedForMachine()) {
error(localize("This post configuration has not been customized for 5-axis simultaneous toolpath."));
return;
}
if (pendingRadiusCompensation >= 0) {
error(localize("Radius compensation cannot be activated/deactivated for 5-axis move."));
return;
}
var x = xOutput.format(_x);
var y = yOutput.format(_y);
var z = zOutput.format(_z);
var a = aOutput.format(_a);
var b = bOutput.format(_b);
var c = cOutput.format(_c);
var f = getFeed(feed);
if (x || y || z || a || b || c) {
writeBlock(gMotionModal.format(1), x, y, z, a, b, c, f);
} else if (f) {
if (getNextRecord().isMotion()) { // try not to output feed without motion
forceFeed(); // force feed on next line
} else {
writeBlock(gMotionModal.format(1), f);
}
}
}
function onCircular(clockwise, cx, cy, cz, x, y, z, feed) {
if (pendingRadiusCompensation >= 0) {
error(localize("Radius compensation cannot be activated/deactivated for a circular move."));
return;
}
var start = getCurrentPosition();
if (isFullCircle()) {
if (properties.useRadius || isHelical()) { // radius mode does not support full arcs
linearize(tolerance);
return;
}
switch (getCircularPlane()) {
case PLANE_XY:
writeBlock(gAbsIncModal.format(90), gPlaneModal.format(17), gMotionModal.format(clockwise ? 2 : 3), iOutput.format(cx - start.x, 0), jOutput.format(cy - start.y, 0), getFeed(feed));
break;
case PLANE_ZX:
writeBlock(gAbsIncModal.format(90), gPlaneModal.format(18), gMotionModal.format(clockwise ? 2 : 3), iOutput.format(cx - start.x, 0), kOutput.format(cz - start.z, 0), getFeed(feed));
break;
case PLANE_YZ:
writeBlock(gAbsIncModal.format(90), gPlaneModal.format(19), gMotionModal.format(clockwise ? 2 : 3), jOutput.format(cy - start.y, 0), kOutput.format(cz - start.z, 0), getFeed(feed));
break;
default:
linearize(tolerance);
}
} else if (!properties.useRadius) {
switch (getCircularPlane()) {
case PLANE_XY:
writeBlock(gAbsIncModal.format(90), gPlaneModal.format(17), gMotionModal.format(clockwise ? 2 : 3), xOutput.format(x), yOutput.format(y), zOutput.format(z), iOutput.format(cx - start.x, 0), jOutput.format(cy - start.y, 0), getFeed(feed));
break;
case PLANE_ZX:
writeBlock(gAbsIncModal.format(90), gPlaneModal.format(18), gMotionModal.format(clockwise ? 2 : 3), xOutput.format(x), yOutput.format(y), zOutput.format(z), iOutput.format(cx - start.x, 0), kOutput.format(cz - start.z, 0), getFeed(feed));
break;
case PLANE_YZ:
writeBlock(gAbsIncModal.format(90), gPlaneModal.format(19), gMotionModal.format(clockwise ? 2 : 3), xOutput.format(x), yOutput.format(y), zOutput.format(z), jOutput.format(cy - start.y, 0), kOutput.format(cz - start.z, 0), getFeed(feed));
break;
default:
linearize(tolerance);
}
} else { // use radius mode
var r = getCircularRadius();
if (toDeg(getCircularSweep()) > (180 + 1e-9)) {
r = -r; // allow up to <360 deg arcs
}
switch (getCircularPlane()) {
case PLANE_XY:
writeBlock(gPlaneModal.format(17), gMotionModal.format(clockwise ? 2 : 3), xOutput.format(x), yOutput.format(y), zOutput.format(z), "R" + rFormat.format(r), getFeed(feed));
break;
case PLANE_ZX:
writeBlock(gPlaneModal.format(18), gMotionModal.format(clockwise ? 2 : 3), xOutput.format(x), yOutput.format(y), zOutput.format(z), "R" + rFormat.format(r), getFeed(feed));
break;
case PLANE_YZ:
writeBlock(gPlaneModal.format(19), gMotionModal.format(clockwise ? 2 : 3), xOutput.format(x), yOutput.format(y), zOutput.format(z), "R" + rFormat.format(r), getFeed(feed));
break;
default:
linearize(tolerance);
}
}
}
var mapCommand = {
COMMAND_STOP:0,
COMMAND_OPTIONAL_STOP:1,
COMMAND_END:2,
COMMAND_SPINDLE_CLOCKWISE:3,
COMMAND_SPINDLE_COUNTERCLOCKWISE:4,
COMMAND_STOP_SPINDLE:5,
COMMAND_ORIENTATE_SPINDLE:19,
COMMAND_LOAD_TOOL:6,
COMMAND_COOLANT_ON:8,
COMMAND_COOLANT_OFF:9
};
function onCommand(command) {
switch (command) {
case COMMAND_STOP:
writeBlock(mFormat.format(0));
forceSpindleSpeed = true;
return;
case COMMAND_START_SPINDLE:
onCommand(tool.clockwise ? COMMAND_SPINDLE_CLOCKWISE : COMMAND_SPINDLE_COUNTERCLOCKWISE);
return;
case COMMAND_LOCK_MULTI_AXIS:
return;
case COMMAND_UNLOCK_MULTI_AXIS:
return;
case COMMAND_BREAK_CONTROL:
return;
case COMMAND_TOOL_MEASURE:
return;
}
var stringId = getCommandStringId(command);
var mcode = mapCommand[stringId];
if (mcode != undefined) {
writeBlock(mFormat.format(mcode));
} else {
onUnsupportedCommand(command);
}
}
function onSectionEnd() {
if (currentSection.isMultiAxis()) {
writeBlock(gMotionModal.format(49));
}
writeBlock(gPlaneModal.format(17));
if (((getCurrentSectionId() + 1) >= getNumberOfSections()) ||
(tool.number != getNextSection().getTool().number)) {
onCommand(COMMAND_BREAK_CONTROL);
}
forceAny();
}
function onClose() {
onCommand(COMMAND_COOLANT_OFF);
if (properties.useG28) {
writeBlock(gFormat.format(28), gAbsIncModal.format(91), "Z" + xyzFormat.format(0)); // retract
} else {
// writeBlock(gAbsIncModal.format(90), gFormat.format(53), gMotionModal.format(0), "Z" + xyzFormat.format(0)); // retract // artur
}
zOutput.reset();
setWorkPlane(new Vector(0, 0, 0)); // reset working plane
if (!machineConfiguration.hasHomePositionX() && !machineConfiguration.hasHomePositionY()) {
if (properties.useG28) {
// 90/91 mode is don't care
writeBlock(gFormat.format(28), gAbsIncModal.format(91), "X" + xyzFormat.format(0), "Y" + xyzFormat.format(0)); // return to home
}
} else {
var homeX;
if (machineConfiguration.hasHomePositionX()) {
homeX = "X" + xyzFormat.format(machineConfiguration.getHomePositionX());
}
var homeY;
if (machineConfiguration.hasHomePositionY()) {
homeY = "Y" + xyzFormat.format(machineConfiguration.getHomePositionY());
}
writeBlock(gAbsIncModal.format(90), gFormat.format(53), gMotionModal.format(0), homeX, homeY);
}
onImpliedCommand(COMMAND_END);
onImpliedCommand(COMMAND_STOP_SPINDLE);
writeBlock(mFormat.format(30)); // stop program, spindle stop, coolant off
writeln("%");
}
Streszczajmy się. Świat jest przeludniony słowami.
S.J.Lec
S.J.Lec
-
Autor tematu - Moderator
-
Lider FORUM (min. 2000)
- Posty w temacie: 189
- Posty: 10767
- Rejestracja: 18 wrz 2010, 05:17
- Lokalizacja: Kozienice
- Kontakt:
Re: Elektrodrażarka drutowa na LinuxCNC

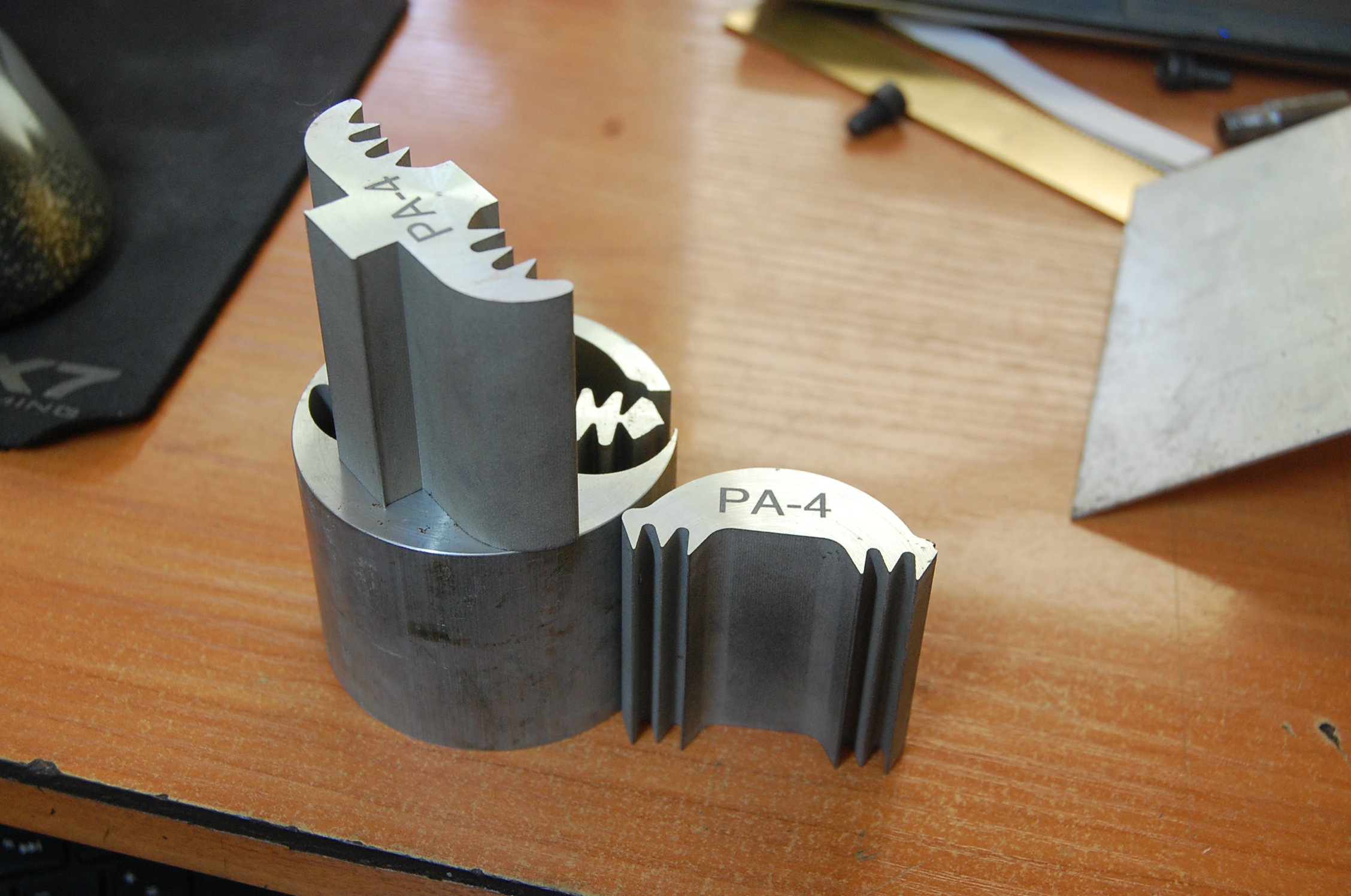

I na większym formacie.


Streszczajmy się. Świat jest przeludniony słowami.
S.J.Lec
S.J.Lec
