Fusion360 i toczenie w LinuCNC

Witam

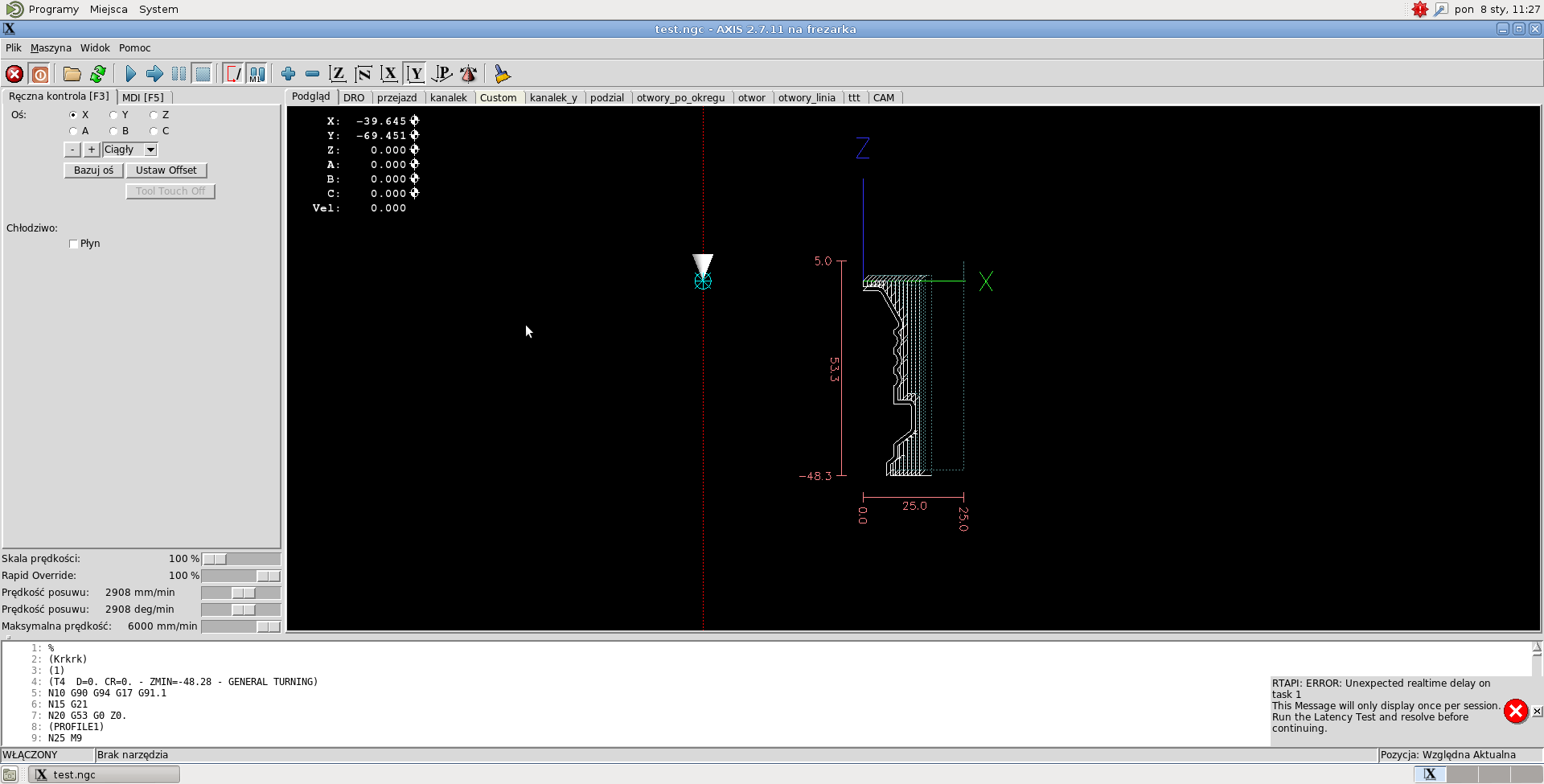

Próbuję użyć Fusion360 do wygenerowania kodu na tokarkę pod linuxcnc ale na dzień dobry wyskakuje taki błąd:

"W pobliżu linii 15 w.. Bad character 'y' used ".
Czy wie ktoś o co chodzi i jak to ominąć?

%
(Krkrk)
(1)
(T4 D=0. CR=0. - ZMIN=-48.28 - GENERAL TURNING)
N10 G90 G94 G17 G91.1
N15 G21
N20 G53 G0 Z0.
(PROFILE1)
N25 M9
N30 T4 M6
N35 S500 M3
N40 G54
N45 M8
N55 G0 X25. Y0.
N60 G43 Z5. H0
N65 G0 Z1.414
N70 X15.901
N75 G1 X15.414 F0.13
N80 X14. Z0.
N85 Z-48.28
N90 X15.
N95 X17.
N100 G0 Z1.414
N105 X14.414
N110 G1 X13. Z0. F0.13
N115 Z-48.28
N120 X14.
N125 X15.414 Z-46.866
N130 G0 Z1.414
N135 X13.414
N140 G1 X12. Z0. F0.13
N145 Z-29.632
N150 G18 G3 X12.932 Z-31.205 I-0.862 K-1.573
N155 G1 Z-36.604
N160 G3 X12.242 Z-38.017 I-1.794 K0.
N165 G1 X12. Z-38.207
N170 Z-48.28
N175 X13.
N180 X14.414 Z-46.866
N185 G0 Z1.414
N190 X12.414
N195 G1 X11. Z0. F0.13
N200 Z-29.411
N205 X11.138
N210 G3 X12.5 Z-30.037 I0. K-1.794
N215 G1 X13.914 Z-28.623
N220 G0 Z1.414
N225 X11.414
N230 G1 X10. Z0. F0.13
N235 Z-29.411
N240 X11.138
N245 G3 X11.5 Z-29.448 I0. K-1.794
N250 G1 X12.914 Z-28.034
N255 G0 Z1.414
N260 X10.414
N265 G1 X9. Z0. F0.13
N270 Z-8.761
N275 X9.673 Z-9.951
N280 G3 X9.326 Z-12.154 I-1.562 K-0.883
N285 G1 Z-13.727
N290 G3 X9.535 Z-14.84 I-2.852 K-1.113
N295 X9.298 Z-16.022 I-3.061 K0.
N300 G1 Z-18.568
N305 G3 X9.536 Z-19.72 I-2.676 K-1.153
N310 X9.298 Z-20.873 I-2.914 K0.
N315 G1 Z-23.325
N320 G3 X9.536 Z-24.439 I-2.491 K-1.114
N325 Z-24.452 I-2.729 K0.
N330 X9.298 Z-25.553 I-2.729 K0.013
N335 G1 Z-29.411
N340 X10.5
N345 X11.914 Z-27.997
N350 G0 Z1.414
N355 X9.414
N360 G1 X8. Z0. F0.13
N365 Z-6.992
N370 X9.5 Z-9.646
N375 X10.914 Z-8.232
N380 G0 Z1.414
N385 X8.414
N390 G1 X7. Z0. F0.13
N395 Z-5.223
N400 X8.5 Z-7.877
N405 X9.914 Z-6.463
N410 G0 Z1.414
N415 X7.414
N420 G1 X6. Z0. F0.13
N425 Z-3.454
N430 X7.5 Z-6.108
N435 X8.914 Z-4.693
N440 G0 Z1.414
N445 X6.414
N450 G1 X5. Z0. F0.13
N455 Z-1.925
N460 G3 X5.418 Z-2.425 I-1.143 K-1.382
N465 G1 X6.5 Z-4.338
N470 X7.914 Z-2.924
N475 G0 Z1.414
N480 X5.414
N485 G1 X4. Z0. F0.13
N490 Z-1.52
N495 G3 X5.418 Z-2.425 I-0.143 K-1.788
N500 G1 X5.5 Z-2.569
N505 X6.914 Z-1.155
N510 G0 Z1.414
N515 X4.414
N520 G1 X3. Z0. F0.13
N525 Z-1.514
N530 X3.857
N535 G3 X4.5 Z-1.633 I0. K-1.794
N540 G1 X5.914 Z-0.219
N545 G0 Z1.414
N550 X3.414
N555 G1 X2. Z0. F0.13
N560 Z-1.514
N565 X3.5
N570 X4.914 Z-0.1
N575 G0 Z1.414
N580 X2.419
N585 G1 X1.005 Z0. F0.13
N590 Z-1.514
N595 X2.5
N600 X3.914 Z-0.1
N605 G0 Z1.414
N610 X1.424
N615 G1 X0.01 Z0. F0.13
N620 Z-1.514
N625 X1.505
N630 X2.919 Z-0.1
N635 X5.881
N640 G0 X10.808
N645 Z-10.811
N650 G1 X9.326 Z-12.154 F0.13
N655 G3 X9.215 Z-12.248 I-1.215 K1.32
N660 G1 X8.651 Z-12.688
N665 G3 X9.535 Z-14.84 I-2.178 K-2.152
N670 G1 X10.949 Z-13.426
N675 G0 Z-14.608
N680 G1 X10.712 F0.13
N685 X9.298 Z-16.022
N690 G3 X8.596 Z-17.047 I-2.824 K1.182
N695 G1 Z-17.577
N700 G3 X9.536 Z-19.72 I-1.974 K-2.143
N705 G1 X10.95 Z-18.306
N710 G0 Z-19.459
N715 G1 X10.712 F0.13
N720 X9.298 Z-20.873
N725 G3 X8.596 Z-21.863 I-2.676 K1.153
N730 G1 Z-22.378
N735 G3 X9.536 Z-24.439 I-1.789 K-2.061
N740 G1 X10.95 Z-23.025
N745 G0 Z-24.139
N750 G1 X10.712 F0.13
N755 X9.298 Z-25.553
N760 G3 X8.596 Z-26.5 I-2.491 K1.114
N765 G1 Z-29.411
N770 X9.798
N775 X11.212 Z-27.997
N780 X13.161
N785 G0 X13.606
N790 Z-37.015
N795 G1 X12. Z-38.207 F0.13
N800 X11. Z-38.988
N805 Z-48.28
N810 X12.
N815 X13.414 Z-46.866
N820 G0 Z-37.797
N825 G1 X12.606 F0.13
N830 X11. Z-38.988
N835 X10. Z-39.769
N840 Z-48.28
N845 X11.
N850 X12.414 Z-46.866
N855 G0 Z-38.578
N860 G1 X11.606 F0.13
N865 X10. Z-39.769
N870 X9. Z-40.551
N875 Z-48.28
N880 X10.
N885 X11.414 Z-46.866
N890 G0 Z-39.359
N895 G1 X10.606 F0.13
N900 X9. Z-40.551
N905 X8.596 Z-40.866
N910 Z-43.23
N915 G3 X8. Z-44.566 I-1.794 K0.
N920 G1 Z-48.28
N925 X9.
N930 X10.414 Z-46.866
N935 G0 Z-43.297
N940 G1 X9.546 F0.13
N945 X8. Z-44.566
N950 G3 X7.906 Z-44.644 I-1.198 K1.335
N955 G1 X7.398 Z-45.041
N960 Z-48.28
N965 X8.
N970 X9.414 Z-46.866
N975 G0 Z-43.85
N980 G1 X9.004 F0.13
N985 X7.398 Z-45.041
N990 X6.796 Z-45.511
N995 Z-48.28
N1000 X7.398
N1005 X8.812 Z-46.866
N1010 G0 X14.933
N1015 Z-1.1
N1020 X5.567
N1025 G1 X1.424 F0.13
N1030 X0.01 Z-2.514
N1035 X3.857
N1040 G3 X4.548 Z-2.917 I0. K-0.794
N1045 G1 X8.802 Z-10.443
N1050 G3 X8.6 Z-11.46 I-0.691 K-0.391
N1055 G1 X7.596 Z-12.244
N1060 Z-13.111
N1065 G3 X8.535 Z-14.84 I-1.122 K-1.729
N1070 X7.743 Z-16.464 I-2.061 K0.
N1075 G1 X7.596 Z-16.579
N1080 Z-18.073
N1085 G3 X8.536 Z-19.72 I-0.974 K-1.647
N1090 X7.8 Z-21.228 I-1.914 K0.
N1095 G1 X7.596 Z-21.388
N1100 Z-22.901
N1105 G3 X8.536 Z-24.439 I-0.789 K-1.538
N1110 X7.871 Z-25.801 I-1.729 K0.
N1115 G1 X7.596 Z-26.016
N1120 Z-30.411
N1125 X11.138
N1130 G3 X11.932 Z-31.205 I0. K-0.794
N1135 G1 Z-36.604
N1140 G3 X11.627 Z-37.229 I-0.794 K0.
N1145 G1 X7.596 Z-40.379
N1150 Z-43.23
N1155 G3 X7.291 Z-43.856 I-0.794 K0.
N1160 G1 X5.796 Z-45.024
N1165 Z-48.28
N1170 X7.21 Z-46.866
N1175 X7.796
N1180 G0 X25.
N1185 Z5.
N1190 G17
N1195 M9
N1200 G53 G0 Z0.
N1205 M30
%

Postprocesor nie taki.

Wybieram Turning i LinuxCNC (EMC2)/ linuxcnc.Jak nie ten, to który może pasować ?

Może na początek wypróbuj na jakimś prostym czopie a nie porywasz się na taką obróbkę.
A pp na tokarkę do linuxcnc nie ma w zestawie. Szukaj w tematach Fusiona na forum.

Ok zrobilem zwykły cylinder i jest to samo.Problem jest z łukami.

%
(DETAL)
(1)
(T1 D=0. CR=0. - ZMIN=-48.3 - GENERAL TURNING)
N10 G90 G94 G17 G91.1
N15 G21
N20 G53 G0 Z0.
(PROFILE1)
N25 M9
N30 T1 M6
N35 S500 M3
N40 G54
N45 M8
N55 G0 X30. Y0.
N60 G43 Z5. H0
N65 G0 Z1.414
N70 X20.897
N75 G1 X20.414 F1000.
N80 X19. Z0.
N85 Z-48.3
N90 X20.
N95 X22.
N100 G0 Z1.414
N105 X19.414
N110 G1 X18. Z0. F1000.
N115 Z-48.3
N120 X19.
N125 X20.414 Z-46.886
N130 G0 Z1.414
N135 X18.414
N140 G1 X17. Z0. F1000.
N145 Z-2.779
N150 G18 G3 X17.077 Z-3.3 I-1.723 K-0.521
N155 G1 Z-48.3
N160 X18.
N165 X19.414 Z-46.886
N170 G0 Z1.414
N175 X17.414
N180 G1 X16. Z0. F1000.
N185 Z-1.652
N190 G3 X17.077 Z-3.3 I-0.723 K-1.648
N195 G1 X18.491 Z-1.886
N200 G0 Z1.414
N205 X16.414
N210 G1 X15. Z0. F1000.
N215 Z-1.5
N220 X15.277
N225 G3 X16.5 Z-1.979 I0. K-1.8
N230 G1 X17.914 Z-0.565
N235 G0 Z1.414
N240 X15.414
N245 G1 X14. Z0. F1000.
N250 Z-1.5
N255 X15.277
N260 G3 X15.5 Z-1.514 I0. K-1.8
N265 G1 X16.914 Z-0.1
N270 G0 Z1.414
N275 X14.414
N280 G1 X13. Z0. F1000.
N285 Z-1.5
N290 X14.5
N295 X15.914 Z-0.086
N300 G0 Z1.414
N305 X13.414
N310 G1 X12. Z0. F1000.
N315 Z-1.5
N320 X13.5
N325 X14.914 Z-0.086
N330 G0 Z1.414
N335 X12.414
N340 G1 X11. Z0. F1000.
N345 Z-1.5
N350 X12.5
N355 X13.914 Z-0.086
N360 G0 Z1.414
N365 X11.414
N370 G1 X10. Z0. F1000.
N375 Z-1.5
N380 X11.5
N385 X12.914 Z-0.086
N390 G0 Z1.414
N395 X10.414
N400 G1 X9. Z0. F1000.
N405 Z-1.5
N410 X10.5
N415 X11.914 Z-0.086
N420 G0 Z1.414
N425 X9.414
N430 G1 X8. Z0. F1000.
N435 Z-1.5
N440 X9.5
N445 X10.914 Z-0.086
N450 G0 Z1.414
N455 X8.414
N460 G1 X7. Z0. F1000.
N465 Z-1.5
N470 X8.5
N475 X9.914 Z-0.086
N480 G0 Z1.414
N485 X7.414
N490 G1 X6. Z0. F1000.
N495 Z-1.5
N500 X7.5
N505 X8.914 Z-0.086
N510 G0 Z1.414
N515 X6.414
N520 G1 X5. Z0. F1000.
N525 Z-1.5
N530 X6.5
N535 X7.914 Z-0.086
N540 G0 Z1.414
N545 X5.414
N550 G1 X4. Z0. F1000.
N555 Z-1.5
N560 X5.5
N565 X6.914 Z-0.086
N570 G0 Z1.414
N575 X4.414
N580 G1 X3. Z0. F1000.
N585 Z-1.5
N590 X4.5
N595 X5.914 Z-0.086
N600 G0 Z1.414
N605 X3.414
N610 G1 X2. Z0. F1000.
N615 Z-1.5
N620 X3.5
N625 X4.914 Z-0.086
N630 G0 Z1.414
N635 X2.419
N640 G1 X1.005 Z0. F1000.
N645 Z-1.5
N650 X2.5
N655 X3.914 Z-0.086
N660 G0 Z1.414
N665 X1.424
N670 G1 X0.01 Z0. F1000.
N675 Z-1.5
N680 X1.505
N685 X2.919 Z-0.086
N690 G0 Z-1.086
N695 G1 X1.424 F1000.
N700 X0.01 Z-2.5
N705 X15.277
N710 G3 X16.077 Z-3.3 I0. K-0.8
N715 G1 Z-48.3
N720 X17.491 Z-46.886
N725 X18.077
N730 G0 X30.
N735 Z5.
N740 G17
N745 M9
N750 G53 G0 Z0.
N755 M30
%

hmm czemu program zaczyna się w G17 ? a potem zmienia na G18
G17 - XY
G18 - ZX

kamar pisze:Może na początek wypróbuj na jakimś prostym czopie a nie porywasz się na taką obróbkę.

Pafełek pisze:Ok zrobilem zwykły cylinder i jest to samo.Problem jest z łukami.

A nie dasz rady zrobić zwykłego walca z promieniem w jednym przejściu? - nadal trochę długi ten program do analizy oczopląsu dostałem więc tylko G17 i G18 rzuciło mi się w oczy. Ps dołącz co wyrzuca linuxcnc (nie mam teraz go pod ręką by puścić symulacje)

Nic nie wrzucisz bo to pp frezarkowy, w krórejś linii ma nawet przejazd osią "y"

kamar pisze: ↑

08 sty 2018, 10:47

Nic nie wrzucisz bo to pp frezarkowy, w krórejś linii ma nawet przejazd osią "y"

I na tym Y się właśnie wywala i krzyczy error

Wczytany na config frezarkowy to nawet pokazuje

Tokarkowy jakiś symulator po wywaleniu Y wczytuje też, i nawet wykonał, ale stać bym przy tym nie chciał
